WEL-209 Manual Patient Lift

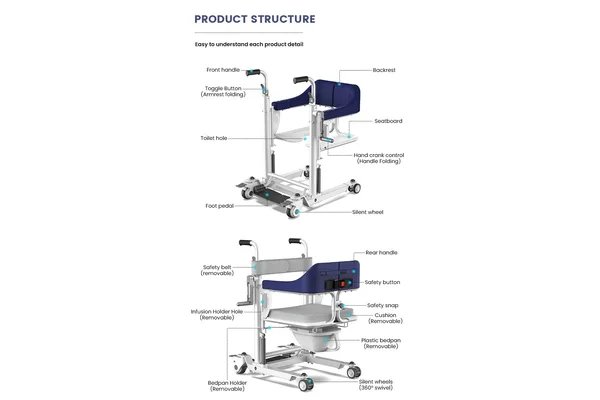

The WEL-209 Manual Patient Lift is designed to help caregivers safely move patients between bed, wheelchair, sofa, or toilet. It uses a hand-crank lifting system that allows easy height adjustment. The strong steel frame, smooth wheels, and comfortable seat make it ideal for hospitals, home care, and elderly care.
Product Specifications
| Category | Patient Lift |
|---|---|
| Model | WEL-209 Manual Patient Lift |

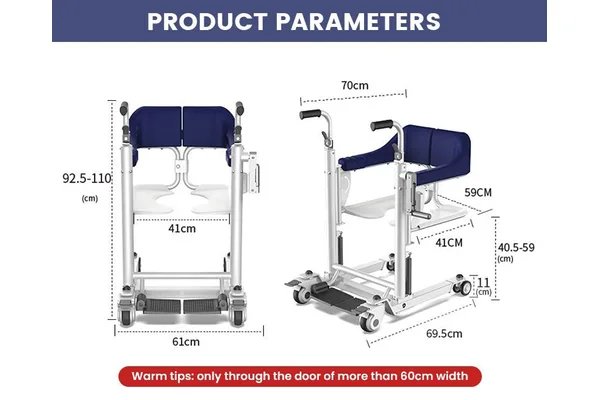

| Size dimensions | 61 × 70 × 97–111 cm |
| Available colors | Brown, Blue or OEM |
| Front wheel size | 6 cm |
| Rear wheel size | 12 cm |
| Seat height | 44 – 62 cm |
| Seat size | 41 × 41 cm |
| Armrest height | 20 – 25 cm |
| Backrest height | 35 cm |
| Ground clearance | 11 cm |
| Reverse width | ≤ 1 m |
| Obstacle climbing | 3 cm |
| Lifting system | Hand-crank manual lift |
| Material | Steel |
| Maximum weight capacity | 150 kg |
| Net weight | 35 kg |
| Package weight | 42 kg |
| Packing size | 80 × 58 × 85 cm |
